ویژگی های تستر مقاومت زمین فلوک مدل Fluke 1623-2 GEO
- ارت تستر دو پل (ac) اندازه گیری مقاومت
- ارت تستر سه پل اندازه گیری ارت
- اندازه گیری فرکانس 128 هرتز
- اندازه گیری مقاومت خاک و ارت زمین در حالت چهار پل
- تست سلکتیو (selective)
- تست stakeless (مقاومت لوپ زمین) (دو کلمپ)
- حافظه داخلی 1500 داده و دسترسی با پورت usb
- استاندارد حفاظتی IP56 مقاوم در برابر آب و گرد و غبار
- نمایشگر 1999 digit LCD
- تجهیزات همراه (Includes) : دستگاه تستر فلوک 2-1623 ، راهنمای کاربری، باتری ها، راهنمای سریع دستگاه، 2 عدد لید تست، کابل usb .
|
 |
| مشخصات ظاهری |
| نوع دستگاه | دیجیتال |
| نوع کاربری | پرتابل |
| مشخصات فنی |
| نوع اندازه گیری | سه سیمه - چهار سیمه - کلمپی - مقاومت ویژه خاک |
| رنج اندازه گیری مقاومت | 0~100KΩ |
| قابلیت ها |
| قابلیت خاص | USB |
| شیوه ارتباطی |
| قابلیت اتصال به کامپیوتر | USB |
| حافظه | دارد |
| لوازم جانبی |
| لوازم جانبی همراه دستگاه | کیف حمل، باتری ها، پراب های تست و میله ها، دفترچه راهنما |
| سایر مشخصات |
| نوع تغذیه | باتری 1.5 ولتی |
| نوع صفحه نمایش | LCD |
| نرم افزار | ندارد |

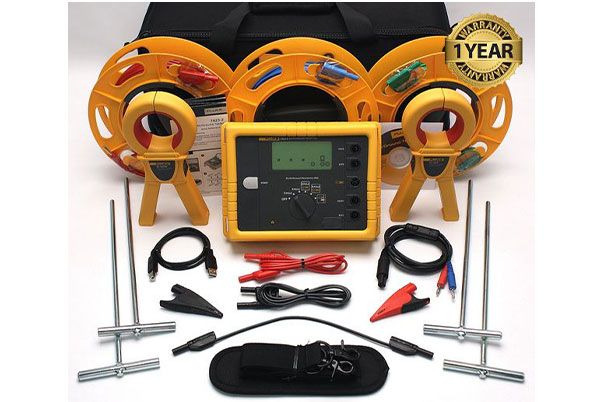

Fluke 1623-2 Earth Ground Tester performs all four ground tests quickly and accurately.
The Fluke 1623-2 earth ground tester measures earth ground loop resistances using only clamps, only stakes, or one clamp and stakes. With the stakeless test method, the Fluke 1623-2 is able to measure earth ground loop resistances for multi-grounded systems using only current clamps. This technique eliminates the dangerous, and time consuming job of disconnecting parallel grounds, and finding suitable locations for auxiliary ground stakes. You can use it to perform earth ground tests in places you’ve not considered before, such as inside buildings, on power pylons, or anywhere you don’t have access to soil.
Keep your options open
Keep in mind, the stakeless test method works only if a bonded earth ground system exists for the building or structure under test. If there is only one path to ground, typical with many residential applications, you will need to use the fall-of-potential test method that requires stakes.
The 1625-2 is also very easy to use. World class accessories speed set up and test time. And the tester tells you which stakes or clamps to connect for each test. The large rotary switch and buttons are easy to operate even with a gloved hand. And you can store up to 1,500 records and access them easily via the USB port.
Need even more accuracy? Check out the 1625-2 that offers:
Automatic Frequency Control that identifies existing interference and chooses a measurement frequency to minimize its effect, thus providing a more accurate earth ground value.
R* measurement that calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see.
Other useful capabilities:
Includes USB port for data storage and transfer
Works with world class that speed set up and test time
Comes with a rugged carrying case
Accessories: Fluke 1623-2 GEO Earth Ground Resistance Meter
Kits (2)
Fluke ES-162P3-2 3-Pole Stake Kit
Fluke ES-162P4-2 4-Pole Stake Kit
Cables (3)
Fluke Cable Reel 25M BL
Fluke Cable Reel 25M GR
Fluke Cable Reel 50M RD
Current clamps (1)
Fluke EI-1623 Selective/Stakeless Clamp Set
Other (3)
Fluke EI-162AC Clip-on Current Transformer (Inducing)
Fluke EI-162BN 320 mm Diameter Split Core Transformer
Fluke EI-162X Clip-on Current Transformer (Sensing) with Shielded Cable Set
